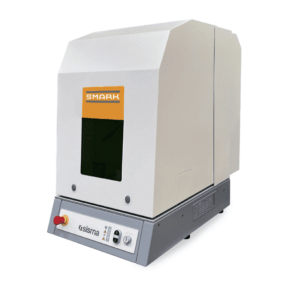

SMARK CO2, laser marking and engraving system.
Versatile

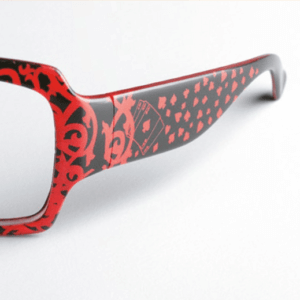

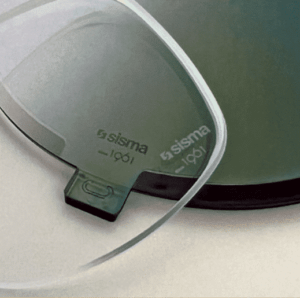

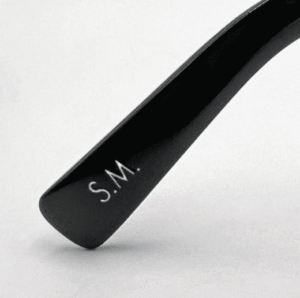

The advanced features of the 20W CO2 laser source, complete with high performance galvanometric head, allow to carry out engraving, marking and cutting operations in line with the highest technical standards. SMARK CO2 can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
SMARK CO2 is a Class 1 system with Ple performance level [certified protection window and double laser safety shutter].
Practical
The 490 mm x 350 mm working chamber is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
Laser Marking
| aser source | CO2 | ||||||||
| Wavelength | 10600 nm | ||||||||
| Average laser power | 20W | ||||||||
| Pulse frequency | 1 200kHZ | ||||||||
| Beam quality | < 1,2 | ||||||||
| Laser spot diameter | 200 µm | ||||||||
| Z azis stroke | 332 mm max piece height 332 mm | ||||||||
| Guide laser | Classe 2 red laser diode | ||||||||
| Working temperature | 10°C 35°C non condensing | ||||||||
| Working chamber | 490 mm x 350 mm x h260 mm | ||||||||
| Power supply | 230 V ± 15% 50/60 Hz 1pH 0,8 kW | ||||||||
| Dimensions | 560 mm x 1156 mm x h981 mm with open door h1501 mm | ||||||||
| Weight | 150 kg | ||||||||
