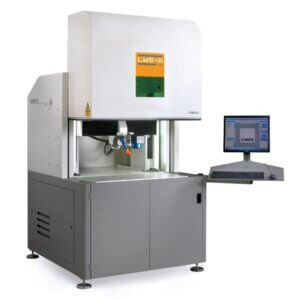

LWS-A, Laser marking stations with three axes

Flexible
The gantry structure, open on three sides, combined with the possibility of moving or removing the working plane, makes it possible to process heavy and large pieces. LWS systems can be customized to meet every need (for example automatic processes).

Modular
The LWS systems can be fitted with many standard features such as the rotary marking axis and marking head for marking angle adjustment and the coaxial vision system (CVS) ideal for automatic and high precision processes.

Sturdy and intuitive
The sturdy structure, made with special care to technical and aesthetic details, guarantees repeatability of results over time. The ergonomic design, combined with the software developed by SISMA, make LWS systems easy to use even for complex processes.

Laser Marking

Tecnical data LWS-M LWS-M Plus LWS-A
X axis stroke 480 mm (550 mm cl. IV) – manual 480 mm, motorized – motorizzato 520mm, motorized – motorizzato
Y axis stroke 375 mm, manual 320 mm, manual – manuale 400 mm, motorized – motorizzato
Z axis stroke 410 mm, motorized 410 mm, motorized – motorizzato 500mm, motorized – motorizzato
Working plane Fixed – fisso (mobile opt.) Manual – manuale Mobile
Available laser sources 20 W – 30 W – 50 W 20 W – 30 W – 50 W 20 W – 30 W – 50 W
Power supply 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW
Dimensions (WxDxH) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta)
Weight 500 kg 500 kg 500 kg
