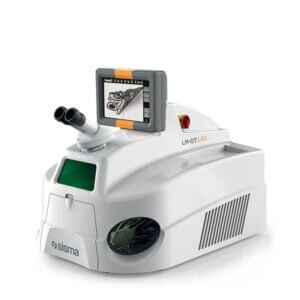

LM-DT, manual laser welding system with microscope and integrated monitor for operator training.

LM-DT, manual laser welding system with microscope and integrated monitor for operator training.

LM-DT, a manual laser welding system equipped with a microscope and integrated monitor, ideal for operator training purposes.

LM-D integrates Smart Spot technology, ensuring consistent welding processes with a broad depth of field and stable laser firing from the initial pulses.

Featuring a new ergonomic design and minimal noise levels, LM-D prioritizes operator comfort. Its ECO function deactivates specific system components during idle periods, reducing overall energy consumption.

LM-D also offers USB and Ethernet connectivity for seamless downloading/uploading of welding recipes, as well as software and firmware updates.

Applications:



Technical details

Technical Data LM-D T 180 LM-D T 210
Source type- Sorgente laser Nd: YAG (flash lamp) Nd: YAG (flash lamp)
Average laser power – Potenza media laser 80 W 85 W
Max peak power – Potenza di picco max 9 kW 10,5 kW
Energy at max pulse duration – Energia a durata impulso max 180 J 210 J
Wavelength – Lunghezza d’onda 1064 nm 1064 nm
Pulse duration – Durata impulso 0,3 ms – 20 ms 0,3 ms – 20 ms
Pulse frequency – Frequenza impulso up to 50 Hz up to 50 Hz
Spot diameter – Diametro spot 0,2 mm ÷ 2 mm (0,1 mm opt.) 0,2 mm ÷ 2 mm (0,1 mm opt.)
Smart Spot V V
Power supply – Alimentazione 230 V ±10% 50/60 Hz 230 V ±10% 50/60 Hz
Machine dimensions 567 x 744 x 612 mm 567 x 744 x 612 mm
Machine weight 60 kg 60 kg
