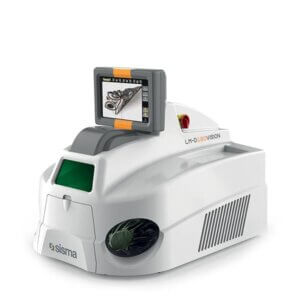

LM-D VISION, manual laser welding system with Syncro View.



Stable
LM-D VISION incorporates the Smart Spot technology for a repeatable welding process ensuring a wide depth of field and a stable laser firing already from the first pulses.

Comfortable
The patented Syncro View system ensures a smooth and stress-free process view even during the welding process. The new ergonomic design and low noise level ensure total operator comfort. The ECO function deactivates specific system components during periods of inactivity thereby ensuring reduced consumption.

Connected
LM-D VISION features USB and Ethernet connectivity for welding recipes download/upload and software and firmware update. The LM-D VISION machine can also be controlled remotely via smartphone, tablet or computer.

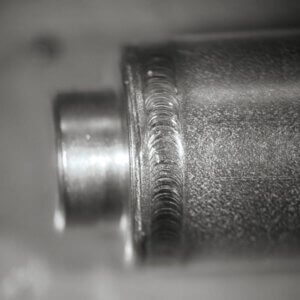

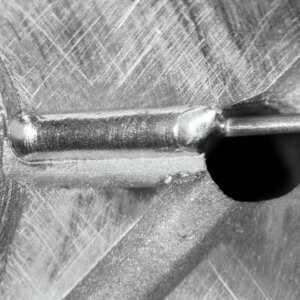

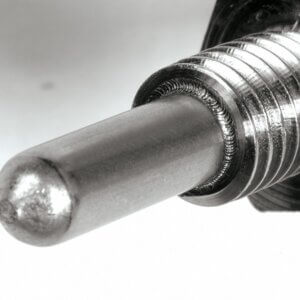

Laser Processes

ModelLM-D VISION 180LM-D VISION 210
Source typeNd: YAG (flash lamp)Nd: YAG (flash lamp)
Wavelength1064 nm1064 nm
Average laser power (max)80 W85 W
Pulse duration0,3-25 ms0,3-25 ms
Pulse frequency0-50 Hz0-50 Hz
Max peak power9 kW10,5 kW
Max pulse energy at 20 ms180 J210 J
Spot diameter0,2÷2 mm (0,1 mm opt.)0,2÷2 mm (0,1 mm opt.)
Smart SpotVV
USB / Ethernet connectivityVV
Power supply230 V ±10% 50/60 Hz230 V ±10% 50/60 Hz
Dimensions567x744x612 mm567x744x612 mm
Weight60 kg60 kg
