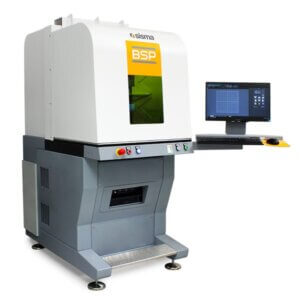

BSP, 3-axis laser marking and engraving system with base
Compact and sturdy, featuring a spacious working chamber and a 490 mm door opening on three sides, this machine facilitates work with a maximum volume of 300x300x300 mm and accommodates pieces weighing up to 20 kg. Its granite structure guarantees durability, precision, and long-term stability. Compatible with a variety of Yb laser sources from Sisma, it offers versatility in installation. With the optional coaxial vision system, this marking laser transforms into a highly productive and flexible machine.
Versatile
Compact, solid, with a large working chamber and a 490 mm door opening on three sides. BSP allows to work up to a max volume of 300 x 300 x 300 mm and load pieces up to 20 kg of weight.
Sturdy
Its granite structure assures durability, precision and stability over time.
Flexible
The full range of Yb laser sources supplied by SISMA can be installed on the BSP model. Together with the optional coaxial vision system (CVS) it becomes a highly productive and flexible machine.
Laser Marking
| Technical data | 200F EP | 300F | 500F | 1000F | |||||
| Active material | Yb | Yb | Yb | Yb | |||||
| Average Power | 20W | 30W | 50W | 100W | |||||
| Wave lenght | 1064 nm | 1064 nm | 1064 nm | 1064 nm | |||||
| Working frequency | 1 ÷ 1000 kHz | 1 ÷ 500 kHz | 1 ÷ 1000 kHz | 1 ÷ 4000 kHz | |||||
| Impulse duration | 3-500 ns | 26 – 250 ns | 6-500 ns | 4-2000 ns | |||||
| Peak power | > 10 kW | > 10 kW | > 10 kW | > 10 kW | |||||
| Pulse energy | > 1 mJ | > 1 mJ | > 1 mJ | > 1,2 mJ | |||||
| Beam quality | < 1,6 | < 1,6 | < 1,6 | < 1,6 | |||||
| Cooling system | Air | Air | Air | Air | |||||
| Axis stroke (XYZ) | 300 mm x 300 mm x 300 mm | 300 mm x 300 mm x 300 mm | 300 mm x 300 mm x 300 mm | 300 mm x 300 mm x 300 mm | |||||
| Max piece weight | 20 kg | 20 kg | 20 kg | 20 kg | |||||
| Precision | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | |||||
| Repeatability | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | |||||
| Power supply | 230 V ± 15% 50/60 Hz – single phase – CEE 16A socket | 230 V ± 15% 50/60 Hz – single phase – CEE 16A socket | 230 V ± 15% 50/60 Hz – single phase – CEE 16A socket | 230 V ± 15% 50/60 Hz – single phase – CEE 16A socket | |||||
| Power absorption | 1 kW | 1 kW | 1 kW | 1 kW | |||||
| Dimensions (L x D x H) | 823 mm x 1329 mm x h 1904 mm (h 2400 mm with open door) | 823 mm x 1329 mm x h 1904 mm (h 2400 mm with open door) | 823 mm x 1329 mm x h 1904 mm (h 2400 mm with open door) | 823 mm x 1329 mm x h 1904 mm (h 2400 mm with open door) | |||||
| Weight | 590 kg | 590 kg | 590 kg | 590 kg | |||||
