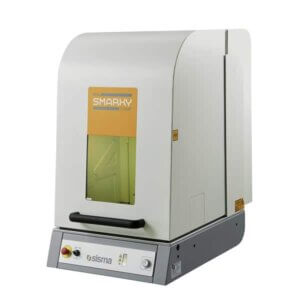

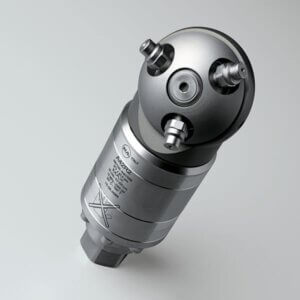

BIG SMARKY, laser marking and engraving system
Versatile
The advanced features of the laser source allow to carry out engraving, marking and cutting operations in line with the highest technical standards. Big Smarky can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
Practical
The 500 mm x 500 mm working chamber (maximum piece height 530 mm with F100 focal length) is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
Laser Marking
| Model | 100 | 200F | 200F EP | 300F | 400F | 500F | 700F | GREEN | |
| Laser source | Nd:YAG | Yb | Yb | Yb | Yb | Yb | Yb | Nd:YV04 | |
| Wave length | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 532 nm | |
| Average laser power | 10 W | 20 W | 20 W | 30 W | 40 W | 50 W | 70 W | 10 W | |
| Pulse frequency | 1÷200 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | 1÷500 kHz | 1÷300 kHz | |
| Pulse duration | 30 ns | 260/40 ns | 3-500 ns | 260/40 ns | 10-240 ns | 250/40 ns | 260/40 ns | 30 ns | |
| Max pulse energy | 0,5 mJ | 1/0,21 mJ | 0,03-1 mJ | 1/0,21 mJ | 0,16 – 1,33 mJ | 1/0,21 mJ | 1/0,21 mJ | 0,25 mJ | |
| Beam quality | ≤ 1,8 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 3,5 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,2 M2 | |
| Laser spot diameter | 25 μm | 20 μm | 20 μm | 20 μm | 40 μm | 20 μm | 20 μm | 12 μm | |
| Z axis stroke | 400 mm | 2000 mm/s | |||||||
| Guide laser | Class 2M Red Laser Diode; λ=650 nm; 2 mW | F100, F160 | |||||||
| Working temperature | 10°C to 35°C – non condensing | ||||||||
| Working chamber | 500 x 500 x 380 mm | ||||||||
| Power supply | 230 V ± 15% 50/60 Hz 1ph 0,8 kW | ||||||||
| Dimensions (WxDxH) | 556 x 943 x h 953 mm (h 1655 mm with open door) | Forced-air cooling | |||||||
| Weight | 125 kg | ||||||||
