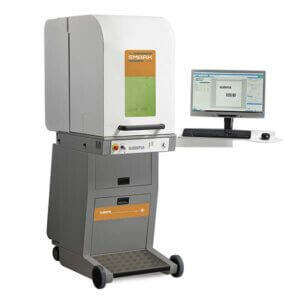

BIG SMARK. laser marking and engraving system with base

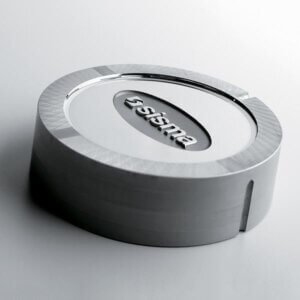

Versatile
The advanced features of the laser source allow to carry out engraving, marking and cutting operations in line with the highest technical standards. BIG SMARK can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
Practical
The 500 mm x 500 mm working chamber (maximum piece height 530 mm with F100 focal length) is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
Laser Marking
| Technical data | 200F EP | 500F EP | 700F EP | 3000F | 7000F | 1000F EP | |||
| Active material | Yb | Yb | Yb | Yb | Yb | Yb | |||
| Average power | 1059 – 1064 nm | 1059 – 1064 nm | 1059 – 1064 nm | 1080 – 1095 nm | 1080 – 1095 nm | 1059 – 1064 nm | |||
| Wave length | 20 W | 50 W | 70 W | 30 W | 55 W | 100 W | |||
| Working frequency | 1÷1000 kHz | 1÷1000 kHz | 1÷1000 kHz | 30÷80 kHz | 70÷140 kHz | 1÷4166 kHz | |||
| Impulse duration | 6-500 ns | 6-500 ns | 9-500 ns | 50-200 ns | 50-200 ns | 6-2020 ns | |||
| Peak power | > 10 kW | > 10 kW | > 10 kW | 8,5 kW | > 10 kW | 14 kW | |||
| Pulse energy | 0,03 – 1 mJ | 0,03 – 1 mJ | 0,03 – 1 mJ | 1 mJ | 0,8 mJ | 0,03 – 1,3 mJ | |||
| Beam quality | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 | |||
| Cooling system | Air | Air | Air | Air | Air | Air | |||
| Z axes stroke | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm | |||
| Z axes precision | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | |||
| Repeatability | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | |||
| Max piece weight | 50 kg | 50 kg | 50 kg | 50 kg | 50 kg | 50 kg | |||
| Power supply | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | |||
| Power absorption | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | |||
| Dimensions (LxDxH) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | |||
| Weight | 240 kg | 240 kg | 240 kg | 240 kg | 240 kg | 240 kg | |||
